Desk Frames

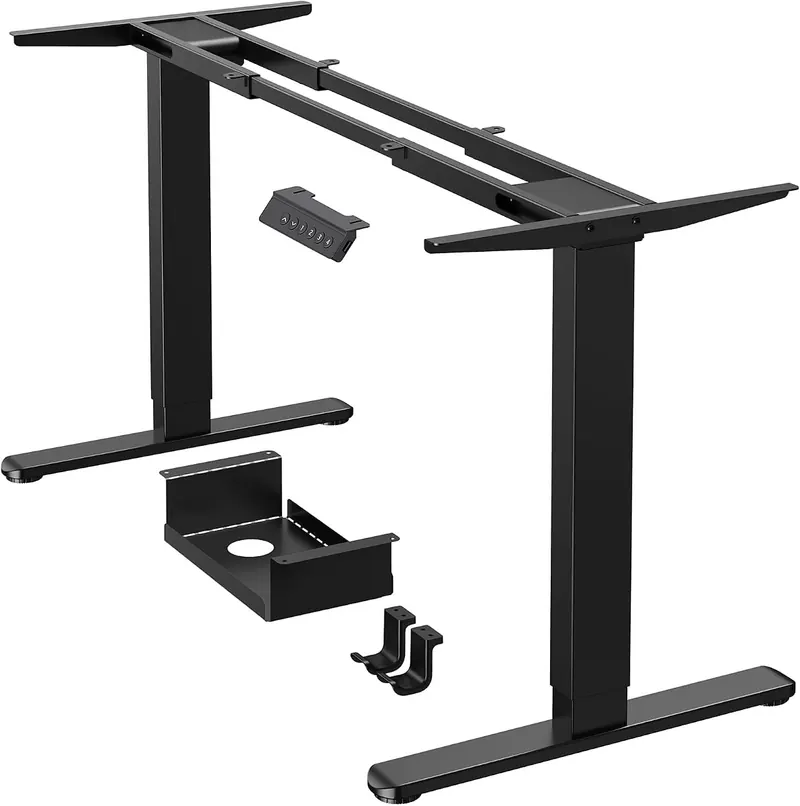

Dual-Motor Desk Frame - Black

Name: Dual-Motor Desk Frame - Black
Brand: ErGear
SKU: B0CQNV8WBS
Price: 169.99 USD
Availability: InStock
Rating: 4.7 (551 reviews)

A heavy top or a very wide one

$169.99★★★★★ 4.7 (551)

Buy All 5 frames

Nothing is sold on this site. Every buying link opens the same item at the retail partner who handles payment, delivery and returns.

What it is for

Single-motor frames run out of road in two places: width and weight. This one answers both, telescoping from 44 to 90 inches and lifting 264 lbs, which brings solid wood, butcher block and full-length worktop into range. Two columns share the load, so a wide top rises level instead of flexing at the middle on the way up.

Check before you order. No top is supplied here either, and at this span the top itself needs thinking about: a thin laminate panel 80 inches long will sag in the middle regardless of the frame under it. Plan on a thick top or an additional centre support for the longest widths.

What assembly actually means

The two-column build is longer than the single-motor one and needs a level floor to set up on, because the columns are synchronised electronically and want to start from the same position. Run the reset sequence once before drilling the top, so any levelling is done with an empty frame rather than a loaded one.

What it changes

A 264 lb rating covers a solid timber top plus a full workstation, which is the load case that defeats most consumer frames.
Ninety inches of span means the frame can carry a worktop offcut or a full-width alcove shelf rather than a standard desk panel.
Two columns keep a long top level through the whole travel, which is the practical difference from a single-motor frame at this width.

In one line each

Dual-motor frame, desktop not included
Telescopes to fit tops from 44 to 90 inches
Height range 28.3 to 46.5 inches
Lifting capacity 264 lbs
Black steel columns and feet

Published figures

Fits desktops	44 to 90 in wide
Height range	28.3 to 46.5 in
Lift	Dual motor
Load capacity	264 lb
Frame	Alloy steel
Colour	Black
Top included	No
Colour	Black
Model reference	B0CQNV8WBS

Figures as published for this model. Anything that has never been published is left out rather than estimated.

Where this one sits among the 5

The same figures as every other page in this section, lined up against the section itself. Being the biggest at something is not the same as being the best at it, so the last column says where a number puts this model and leaves the judgement to you.

Figure	This model	All 5 frames	Where that puts it
Load rating	264 lb	176 to 264 lb	The strongest of the 5
Widest span	90 in	63.3 to 90 in	The widest of the 5

Ranges cover only the frames that publish the figure at all; a model that has never published one is left out of that row rather than counted as a zero.

What the extra money actually buys

Figures on which this model beats every cheaper frame in the section, rather than beating a convenient one.

Load rating 264 lb. Stronger than every one of the 3 cheaper models that publish this figure, the best of which is 176 lb.
Widest span 90 in. Wider than every one of the 3 cheaper models that publish this figure, the best of which is 63.3 in.

Where it sits in the range

Of the 5 frames in this section this is the fourth cheapest: 3 cost less, 1 costs more, and the section runs from $99.98 to $199.99.

Against everything cheaper in the section it is ahead on two figures: load rating at 264 lb and widest span at 90 in. That is the useful comparison, because it is the part of the price you can point at.

It carries 551 customer reviews at 4.7 out of five, which is the highest rating in the section. Those numbers come from the retail listing and are reproduced rather than curated, including when they are unflattering.

What the box says

The product description exactly as it ships with the listing, unedited, so everything written above can be checked against it.

[Super Durable, Extremely Stable]ErGear upgraded...

[Super Durable, Extremely Stable]ErGear upgraded standing desk frame with a total lifting capacity of 264 lbs (120kg), this standing desk frame is built to provide a reliable foundation for your workspace. The upgraded strong steel legs are thicker and wider to offer steady, wobble-free lifting from 28″ to 47″ tall. The standing desk frame travel speed of 1.00"/sec, it is built with your ultimate convenience in mind!

[Powerful Dual Motor Lifting] With over a decade...

[Powerful Dual Motor Lifting] With over a decade of proven durability and stability, the ErGear standing desk frames are expertly machined with reliable motors. Driven by two advanced motors, the adjustable desk legs raise and lower your workstation instantly, speeding up the lifting process to 1 inch/sec while operating smoothly and quietly. Tested to withstand 80,000 lift cycles, this dual motor standing desk legs is designed for long-lasting performance.

[Smart Control within Reach] Full electric adjus...

[Smart Control within Reach] Full electric adjustable desk frame height from 28'' to 47'' with 4 customizable memory presets. You can preset buttons to quickly transition between the most comfortable sitting or standing work positions. Besides, the ergonomics sit stand desk legs come with an extra extension cord allows more freedom for you to install the hand controller.

[Cable Management Tray]The standing desk frame f...

[Cable Management Tray]The standing desk frame features a tray that attaches underneath the desk to organize a power strip and cables out of the way. Cable clips allow you to neatly route wires under the desktop, while a storage hook on each side provides a place to hang your bag or headphones.

[Ideal DIY Desk Solution] The upgraded standing...

[Ideal DIY Desk Solution] The upgraded standing desk frame is designed for height and width adjustments to fit any shape or size of space. ErGear's adjustable desk legs with retractable crossbars are engineered for a length range of 44''-90'' and a width range of 24''-31.5''. Become the designer and choose your favorite standing desk size and style to build the ultimate workstation now!
